Installing a killswitch on a boat can seem like a daunting task, but with the right tools and instructions, it can be done in just a few minutes. Boat killswitches allow you to quickly shut down the engine if someone falls overboard or if there is some other emergency.

There are a few different ways to install a killswitch on a boat. One way is to mount the switch near the throttle so that it can be easily reached in an emergency.

We will show you how to install a killswitch on your boat using a simple toggle switch. So read on and learn how to keep your boat safe and secure with this handy installation guide!

Boat Kill Switch Wiring Diagram

A kill switch is used as a safety device on boats. If someone falls overboard, the kill switch can be used to shut off the engine so that the boat doesn’t keep going without anyone at the helm. Kill switches are usually located near the captain’s chair or at the stern of the boat.

To wire a boat kill switch, you will need:

  • A length of marine-grade wire.
  • A terminal block, or a similar connector.
  • A knife or wire strippers.
  • Electrical tape Begin by running your wire from the battery to the location of your kill switch.

Use marine-grade wire, which is designed to withstand harsh conditions like salt water and high humidity. Strip about ½ inch of insulation from each end of the wire using a knife or wire strippers.

Attach one end of the wire to your terminal block or connector, then attach the other end of the wire to one of the terminals on your kill switch. Use electrical tape to secure all connections and prevent corrosion.

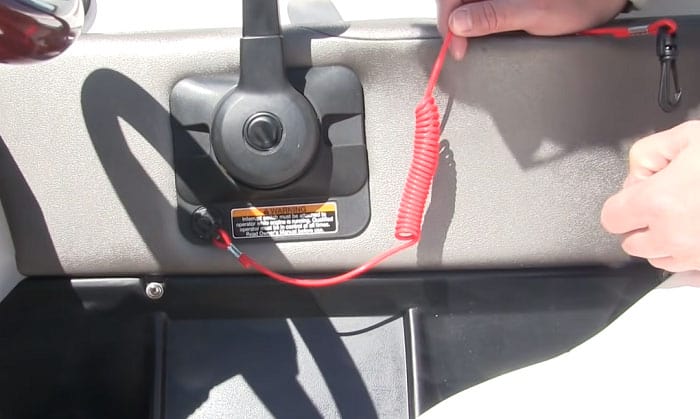

How to Attach Mercury Kill Switch Lanyard

If you own a boat, you know how important it is to have a Mercury kill switch lanyard. This lanyard will ensure that your engine will shut off if you fall overboard, preventing serious injury or even death.

Here’s how to attach your Mercury kill switch lanyard:

1. Locate the kill switch on your engine. It should be near the throttle control.

2. Unscrew the cover of the kill switch and remove the wire from the terminal inside.

3. Take the end of the lanyard and thread it through the hole in the top of the kill switch housing. Make sure that there are at least six inches of lanyard between the housing and the snap hook.

4. Reattach the wire to the terminal inside of the housing and screw on the cover tightly. Be sure not to overtighten as this could damage the housing.

5. Clip the snap hook onto your life jacket or belt loop so that it is easily accessible if you fall overboard.

Outboard Kill Switch

Assuming you would like a blog post discussing the outboard kill switch: An outboard kill switch is a device that is used to shut off the engine of a boat.

It is usually attached to the person operating the boat, and if they fall overboard, the switch will be activated and the engine will be turned off. This can help prevent accidents and injuries.

Universal Kill Switch Wiring Diagram

When it comes to wiring a universal kill switch, there are a few things you need to keep in mind. First of all, you need to make sure that the power source is disconnected before starting any work. Otherwise, you could risk electrocution.

Once the power is off, you can start by stripping the ends of the wires that will be used to connect the switch. Then, using a soldering iron, solder the wires to the terminals on the switch. Make sure that all connections are secure and free of any debris or corrosion before reconnecting the power source.

If everything is wired correctly, your universal kill switch should now be operational. In most cases, it will be installed in line with the positive battery terminal so that it can cut off power to the entire vehicle if needed.

 However, you can also wire it into other circuits as needed. Just make sure that you understand how electricity works before attempting any type of wiring project!

How to Install a Killswitch on a Boat?

How Do You Wire a Kill Switch on a Boat Motor?

If you’re like most boat owners, you probably don’t give much thought to your boat’s kill switch. But if you don’t have one installed, or if it’s not working properly, it could be the difference between life and death. A kill switch is a safety device that shuts off the engine in an emergency situation.

if you want to upgrade to a push-button switch, here’s what you need to do:

1. Disconnect the battery cables from the terminal posts.

2. Mount the kill switch in a convenient location using screws or bolts (consult your owner’s manual for specific instructions).

3. Run new battery cables from the terminal posts to the terminals on the back of the kill switch (these are usually labeled “B” and “M”).

4. Reconnect all of the wires according to their colors (red to red, black to black). Make sure all connections are tight and free of corrosion.

5. Test your work by starting up the engine and activating the kill switch. The engine should shut off immediately when activated.

Where Does the Kill Switch Go on a Boat?

Most boats have a kill switch that is attached to the engine. The kill switch is usually located near the steering wheel or throttle. If the engine stops while the boat is in motion, the kill switch will cut off the fuel supply and stop the engine.

How Do You Install a Killswitch on an Outboard Motor?

If you’re interested in adding a killswitch to your outboard motor, there are a few things you need to know.

First, you need to determine where the killswitch will be mounted. The most common location is on the dashboard, but some people prefer to mount it on the transom or engine cowl.

Once you’ve decided where to mount the killswitch, you need to drill a hole for the wiring to pass through. Be sure to use a drill bit that’s slightly smaller than the diameter of the wiring so that it fits snugly.

Next, run the positive wire from the battery through the hole and connect it to one terminal on the killswitch.

Then, connect a length of negative wire to the other terminal on the killswitch and route it back to the battery.

Finally, test your work by starting the engine and flipping the switch off and on.

How Do You Install a Kill Switch on a Boat Battery?

To install a kill switch on a boat battery, first, locate the positive and negative terminals. The positive terminal will be marked with a “+” sign, and the negative terminal will be marked with a “-” sign.

Next, remove the terminal covers from both terminals. Once the covers are off, take the red wire and attach it to the positive terminal. Make sure that the connection is secure and that there is no exposed metal.

Then, take the black wire and attach it to the negative terminal. Again, make sure that the connection is secure.

Finally, replace the terminal covers and screw them in place. That’s it! You’ve now installed a kill switch on your boat battery.

Kill Switch installation on a small boat.

Conclusion

So, there you have it. How to install a killswitch on your boat in just six easy steps.

If you ever find yourself in the unfortunate position of losing control of your boat, this simple installation could be the difference between a close call and a total disaster.

Have we missed anything? Let us know in the comments below!
